Feature Vol. 59, No.9, p. 16-20

Louis Comfort Tiffany:
Artistry, Chemistry, Secrecy

Maureen Byko


SEPTEMBER 2007 ISSUE
About this Issue



ALSO APPEARING IN PRINT
JOM in Print
The print and/or PDF versions of the article can be acquired.



FIGURE 1.
Figure 1
A panel from Tiffany’s The Four Seasons composition, which won him a gold medal at the 1900 Exposition Universelle in Paris. Image courtesy of the Charles Hosmer Morse Museum of American Art, Winter Park, Florida.



FIGURE 2.
Figure 2
Tiffany employed a team of artisans to create his windows and lamps. Shown are workers in his ecclesiastical window department. Image courtesy of the Charles Hosmer Morse Museum of American Art, Winter Park, Florida.



FIGURE 3.
Figure 3

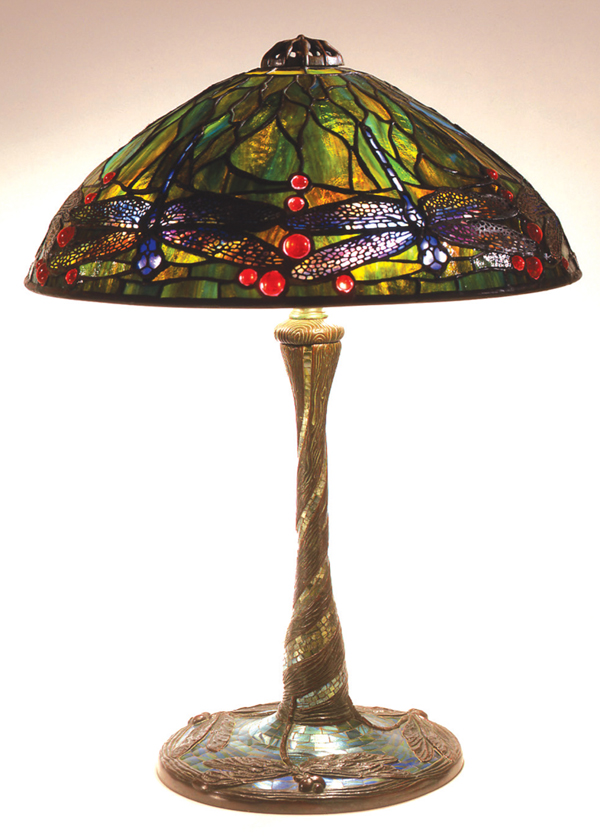

A dragonfllamp, a popular design from Tiffany’s studios. The mosaic base features colored glasses similar to those shown on the cover of this issue. Figure courtesy of The Neustadt Collection of Tiffany Glass, Long Island City, New York.



FIGURE 4.
Figure 4
A chapel designed by Tiffany for exhibit at the 1893 World’s Columbian Exposition in Chicago, to promote his ecclesiastical work. The chapel gained Tiffany international recognition and is now on display at the Charles Hosmer Morse Museum of American Art in Winter Park, Florida. Photo courtesy of the Morse Museum.



FIGURE 5.
Figure 5

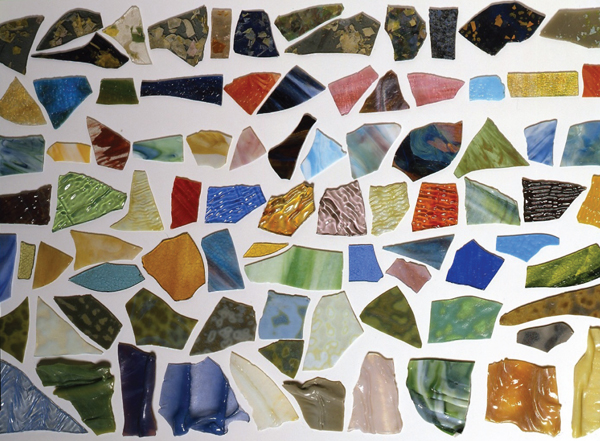

An array of glass samples left behind when Tiffany closed his Corona (Queens) New York furnaces for good. Photo courtesy of The Neustadt Collection of Tiffany Glass, Long Island City, New York.



FIGURE 6.
Figure 6

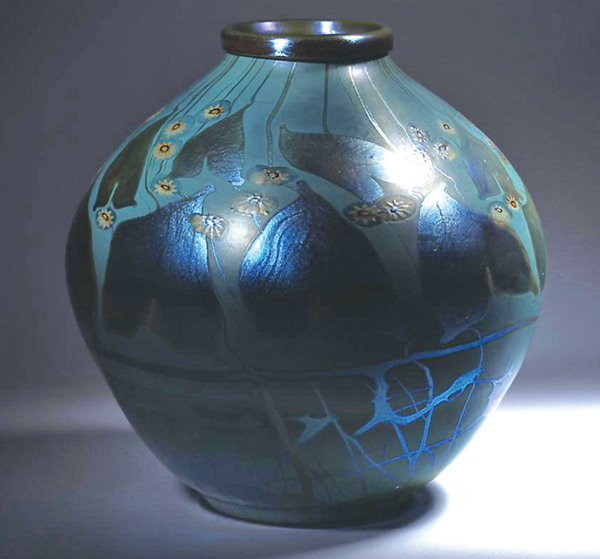

A Favrile vase reflects light off its iridescent surface. Image courtesy of the Charles Hosmer Morse Museum of American Art, Winter Park, Florida.



FIGURE 7.
Figure 7

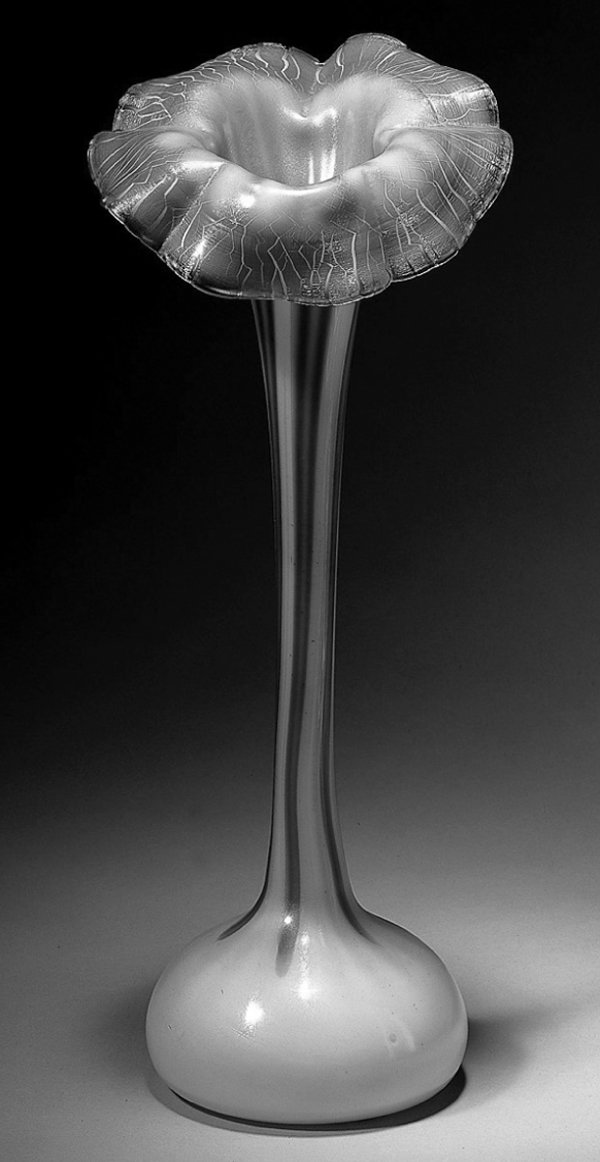

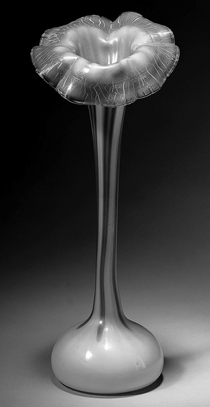

A Favrile vase. Image courtesy of the Charles Hosmer Morse Museum of American Art, Winter Park, Florida.



FIGURE A.
Figure 1a
An 1889 Tiffany window commissioned by the alumni of a Pittsburgh women’s college. Image courtesy of Chatham University, Pittsburgh, Pennsylvania.



RELATED WEB SITES



RELATED ON-LINE READING FROM JOM
UNRESTRICTED ACCESS (FREE TO ALL USERS):

RESTRICTED ACCESS (FREE TO TMS MEMBERS):



Questions? Contact jom@tms.org.
©
2007 The Minerals, Metals & Materials Society

ARTISTRY, CHEMISTRY, SECRECY

Mix 12 oz. silver nitrate, 4 oz. uranium, 4 oz. manganese, 4 oz. arsenic, 12 oz. potash nitrate. Add to 100 lb. of molten glass. Combine with artistry, chemistry, and secrecy. The result: “Gold Lustre,” a signature glass of Louis Comfort Tiffany, also called iridescent for its lustrous finish.

Tiffany, the New York artist who gained renown from the 1880s through the 1920s for his colorful windows and mosaic lamps, began as a painter but moved on to a palette of minerals and metal oxides with which he created delicately hued and textured glasses. Unlike stained glass artists of his time, Tiffany mixed the colors into his glass rather than painting them onto it (Figure 1). Experimentation in his labs, conducted by skilled chemists and glass workers, found that the addition of gold to a batch of glass would give red; cobalt, blue; uranium, yellow; iron oxide, green. For every color needed, for every leaf or blade of grass, a new formula was found that provided the required shade.


"Tiffany, the New York artist who gained renown from the 1880s through the 1920s for his colorful windows and mosaic lamps, began as a painter but moved on to a palette of minerals and metal oxides with which he created delicately hued and textured glasses."

Those formulas, key to the art of creating multilayered scenes in glass, were a closely kept secret in the Tiffany shops. In fact, his chief chemist, Arthur J. Nash, reportedly never shared them even with Tiffany himself. Not that it mattered. Tiffany, experts in art and glass agree, was not a master of chemistry but of artistry and industry. He hired the best people he could find to execute his vision of painting nature in glass (Figure 2).

The business plan worked for years, but by the time he died in 1933, styles had changed and Tiffany’s glass corporation was bankrupt. Dragonfly lamps (Figure 3) were boxed and hidden away in attics and basements, artifacts of an Art Nouveau movement gone musty. (Read about a university’s long-hidden Tiffany window in the sidebar.) Starting around the 1970s, though, Tiffany’s color and style was rediscovered. His lamps became ever more valued, with standout specimens bringing more than a million dollars at auction.

Tiffany is back, and not likely to fade from the arts scene again. His work, more than a century old, is still being deconstructed, studied, cataloged, and imitated. And as more information about his business surfaces, appreciation of the science behind the glass grows.

THE ONLY COLLECTION LIKE IT

At his peak, Tiffany’s decorative skills could be found in the homes of the wealthy or at the altars of churches (Figure 4). He was multitalented: an interior decorator, a painter, and a designer. But Tiffany is best known for his glass, which can still be viewed in its unfinished form at the Neustadt Collection of Tiffany Glass, housed in the Queens Museum of Art in New York.

The Neustadt collection provides a look at the starting point for Tiffany’s colorful products: the collection includes 164,000 pieces of sheet glass left behind when Tiffany’s studio went bankrupt. In this multihued cache of raw materials can be found the green of grass and the green of trees. The green of daffodil leaves and the green of zinnia leaves. As nature required, Tiffany ordered glasses. The collection has been divided into colors, then shades of colors, then shades that feature different textures, such as drapery glass, which is folded upon itself for a flowing three-dimensional look. (See the lower portion of Figure 5 for examples.)


"The Neustadt collection provides a look at the starting point for Tiffany’s colorful products: the collection includes 164,000 pieces of sheet glass left behind when Tiffany’s studio went bankrupt."

“We have 41 different shades of medium green drapery glass, and 13 different shades of light green drapery glass,” said Lindsy Parrott, collections manager and associate curator. “There are 22 shades of white in our collection of drapery glass.”

“Our collection of sheet glass is the only collection like it,” she said. For the last seven years, the museum has been cataloging the glass, which provides a rare glimpse into the demands that Tiffany’s intricate designs placed on his employees.

Early in his career, Tiffany bought his glass from existing glass houses. But competition in the stained glass business was growing fierce in the late 1800s, and Tiffany’s competitor, John LaFarge, was buying his glass from the same glasshouse in Brooklyn that Tiffany contracted with. To protect his trade secrets, Tiffany called on his financial strengths and built his own factory in Queens in 1892. There he could experiment with colors, make high volumes of glass, design windows and lamps, and with as many as 200 employees on the payroll, manufacture them, all under one roof. The Industrial Revolution had taken hold, and Tiffany found a way to mass produce hand-crafted art (Figures 6 and 7). “Tiffany brilliantly combined arts industry with creating one-of-a-kind works of art,” Parrott said.

The remnants of the Tiffany furnace’s heyday will continue to be sorted and cataloged for another year or two, she said. When the work is done, a permanent archive will be set aside holding at least one example of glass of every color, texture, type, and pattern in the collection. “This archive will be available for glass historians to study and will continue to be included and interpreted in our exhibitions,” she said.

In addition, the museum is studying the glass, identifying which was made by Tiffany and which was purchased from other glasshouses, investigating how the different colors and textures were created, and establishing dates for when the production of various types of glass began, Parrott said.

WE THINK THERE’S A TIFFANY WINDOW IN THE BASEMENT

Until 1997, the arc of Tiffany’s popularity was evidenced in two enormous wooden crates stored in a dark basement at Chatham University in Pittsburgh. The women’s liberal arts college more than 100 years ago commissioned a window from an emerging glass artist—Louis Comfort Tiffany—to honor the first fifteen graduating classes. The artist agreed to create a window for $650, which was no small sum at the time, and completed the work in 1889 (Figure A). According to the university, the window featured Tiffany’s early experimentation with opalescent glass, a milky, shimmering white material, and included as many as fi ve layers of glass in a technique Tiffany later patented. The method involved placing a sheet of colored glass over a sheet of opalescent glass, leaving some space in between the sheets through which light could travel. As a result, Tiffany wrote in his patent, “a more beautiful play of color is given to the opalescent mosaic, with a less rigid outline to the color.”

The design itself was not entirely original, though; it was a replication of a scene from Michelangelo’s Sistine Chapel, featuring the Erythraean sibyl sitting before a book. In the Chatham version, the sibyl is surrounded by the names of infl uential intellectuals and scientists who would have a place in any liberal arts curriculum at the time. The prophetess is looking at a book that is inscribed with Chatham’s motto: “That our daughters would be as cornerstones, polished after the similitude of a palace.”

The window was hung in the university’s chapel and there it stayed for 36 years, accumulating all the soot and carbon to be found in Pittsburgh’s steel-making atmosphere. The dingy art work was finally removed to let in more light, and no more thought was given to the piece until 1992, when Esther Barazzone was hired as president of Chatham. She was touring the campus when the talk turned to Tiffany. “I was told, ‘We think there’s a Tiffany window in the basement,’” Barazzone recalls. “It was in two separate enormous packing crates that were nailed closed. I tucked the memory away in my head and left.”

A few years later, the university constructed a new science building and was looking for art to hang in its high-ceilinged atrium. “All of a sudden I remembered what was in this basement, and we started doing some research on who was the best conservator of Tiffany. We called the Metropolitan Museum of Art in New York and asked them. Someone was down here the next day, they were so excited over such a huge find,” Barazzone recalled. “They uncrated the box and had a very powerful light shining on it. It was one of the biggest thrills I ever had looking in there. They corroborated instantly that it was a Tiffany.”

However, years in the basement had not been kind to the art work. “A good part of it was broken,” Barazzone said. In some sections, Tiffany’s layers had fallen into one another, creating a confusing mix of colored glass. With some direction from the Metropolitan, the university hired a Tiffany restoration expert. After two years and $250,000, the work was cleaned, repaired, and in 2000 was hung in a place of prominence in the science building. Barazzone can’t begin to estimate the value of the former basement debris. “We think it’s priceless,” she said.

DON’T LET ANYONE SEE YOU MIX THE ABOVE

Although Tiffany fell out of vogue late in his career, and his works were relegated to basements and attics, the artist was never in danger of financial ruin. He was born into wealth, made a handsome living selling his art, and when he died was still living comfortably.

However, the unsung chemists who figured out how much gold was needed to make ruby red or the role of silver nitrate in making luster glass, the craftsmen who churned out the windows, lamps, and pottery that Tiffany dreamed up, were not so fortunate. They never received the acclaim of their employer, and for one of those glassmakers, muchpublicized bitterness resulted:

“Don’t let anyone ever tell you that Louis C. Tiffany invented Favrile glass. I personally made it for over 25 years and he never saw the inside of the lab or even mentioned a chemical to me. And he did not know how to make luster glass.” Such were the angry ramblings of Leslie Hayden Nash, the son of Arthur J. Nash, whom Tiffany invited to head up his glassmaking operation in 1890. Arthur Nash, who is said to have developed Tiffany’s iridescent glass, also known as luster glass, kept a locked leather notebook filled with formulae for various glasses. Leslie Nash too, kept notes, but he punctuated the recipes for stunning glass colors and effects with bitter comments on Tiffany.


"Don’t let anyone ever tell you that Louis C. Tiffany invented Favrile glass. I personally made it for over 25 years and he never saw the inside of the lab or even mentioned a chemical to me."

“LCT = Nuts!” he simply wrote on one page. The Nash notebooks, as they came to be known, are now on microfilm and since 2004 have been available for public view at the Corning Museum of Glass in Corning, New York. On page after page, Leslie Nash scrawls his belief that Tiffany built his success dishonestly, on the work of people who never were credited. Jealousy of Tiffany’s fortunes is evident.

The ramblings may be a fascinating study into the mind of a disgruntled worker, but the formulae provide insight into glass chemistry and the secrecy required of a leading art house. All of the formulae were coded, with a list of more than 100 possible ingredients each assigned a number. For example, 1 stood for quartz, 50–antimony sulfide, 62 – manganese, 37–uranium oxide, 24–silver nitrate, 13–arsenic, and so on. The formulae were written with the code number first, and then quantity in first pounds then ounces. The notebook’s mixture for blue luster glass, for instance, started with the following sequence: 24--3--0, which stood for silver nitrate, 3 lb., 0 oz. Next came 45--1--0—cobalt oxide, 1 lb., 0 oz; 62--1--0 meant 1 lb. of manganese; 1--1--0, 1 lb. of arsenic; and finally, 3-- 3--0 was 3 lb. potash nitrate.

Nash wrote that the color was prepared in wooden bowls in the lab and delivered to the mixer, who put the contents into the batch, or the clear glass, ready for the furnace. Mixing was, “done in the lab and kept secret,” he wrote. Where he listed the ingredients for gold luster glass, he added the note, “Don’t let anyone see you mix the above.”

The Nash notebooks also include some fascinating tales of the trial and error involved in achieving desired colors. “A full rich yellow glass has caused difficulty, you find very much as a general thing,” Nash wrote. “Dad worked for years to make a golden yellow glass containing lead. It is this . . . that gives a fire to the glass . . . and was the basic glass batch found in luster glass. Dad noted that uranium had not been used to any extent but always felt that it had many good properties.”

Whether Tiffany had any knowledge of the technology behind his shimmering glass clouds or vibrant daffodils is doubtful, even those outside of the Nash family agree. “As far as has been documented, Tiffany didn’t have any idea how to make glass, he didn’t know what the formulas were—he was the gentleman artist,” said Parrott. “It seems very clear that the Nashes are responsible, first and foremost, for the iridescent glass Tiffany is known for,” she said.

A PATENTABLE TECHNOLOGY

As a materials scientist, Gregory Merkel appreciates the techniques glassmakers used to keep deep red from going purple, or how to make sure green is not too green. And as a collector of iridescent glass, he appreciates the end results when the chemists do their job right. Merkel works in the Crystalline Materials Research Department at Corning Incorporated in Corning, New York. His employer is conveniently close to the Corning Museum of Glass, where centuries of glass products and art are displayed. This small town in rural New York was built around the glass industries, a feature that held some allure for Merkel when he moved here in 1981.

After his arrival in Corning, he began collecting Aurene glass, an iridescent glass developed by another Tiffany competitor, Frederick Carder. “I became very interested in the science and technology behind it, why it looks the way it does, its history,” Merkel said.

He found that both Tiffany and Carder employed similar techniques to achieve their effects. The key, he said, was to incorporate silver ions dissolved in the glass, subsequently reduce the glass to form metallic silver at the surface, and then spray the glass with a solution of tin salt to form a thin iridescent layer of tin oxide.

Nash, in his notebooks, reported that the silver surface required heating the glass object, while still on the punty, in the glory hole “
with the oil “turned up until the flame appears green.” The effect, he wrote, was “to produce a reducing atmosphere.” The work is plunged in and out of this flame until a silver mirror appears on the surface.” Then, Nash wrote, came the spray with a solution of proto chloride tin, dissolved in water, on the hot glass surface. The method was developed after years of testing, according to Nash.

“AJN (Arthur J. Nash) made literally thousands of experiments before obtaining a silver luster and then a copper luster. The spray of tin solution turned the silver into a delicate gold or bluish luster.”

Merkel said the reducing flame “would strip oxygen atoms off the surface of the glass. Something in the glass has to change its charge to compensate, and silver is most ready to reduce its charge. The silver precipitates out of the glass as silver metal,” he said. When the surface is sprayed with the tin solution and reheated multiple times, the mirrorlike surface buckles, he said, forming a kind of matte, satiny surface.

Merkel said no one is sure who invented the process, but, if it was Arthur Nash, working for Tiffany, Merkel believes he should have patented his iridescent glassmaking technique. “I couldn’t find any compositional patents taken out,” he said of Tiffany. “That surprises me. I suspect that this would have been a patentable technology at the time.”

THE CREATIVE GENIUS

His glass may be in Queens, and pieces of Tiffany’s work scattered around the globe, but the most comprehensive collection of Tiffany windows, lamps, pottery, and more can be found at the Charles Hosmer Morse Museum of American Art in Winter Park, Florida. The collection includes the chapel interior designed for the 1893 World’s Columbian Exposition in Chicago, which ignited worldwide demand for Tiffany’s work.

Jennifer Thalheimer, collection manager for the museum, said interest in Tiffany began to reignite as early as 1948, with a small exhibit of his Favrile glass vases. “But it wasn’t really until the 1970s and 1980s that general recognition and admiration has trickled down to the general public,” she said.


"I think there is a really interesting movement today to minimize Tiffany’s role in the work the studios did, but I think it is misguided. "

Now, interest is high and is likely to remain so, Thalheimer believes, despite the questions Leslie Nash attempted to raise in his writings. “Like all areas of Tiffany’s studios, Louis Comfort Tiffany hired qualified people to handle the day to day running of the companies while he continued the overall vision and pushed the artistic endeavors. Tiffany directed the production and had great insight into the daily functioning, but pushed his designers to attain the goals he set, leaving room for them to expand and be creative. Arthur J. didn’t seem to have a problem with this relationship. . . . Arthur J’s son is the one who pushed the idea that the Nashes were the innovators and Tiffany stole the fame.”

But, Thalheimer wonders, if the Nashes were so skilled, if they were the talent behind the operation, why did the Tiffany legacy die? “I think there is a really interesting movement today to minimize Tiffany’s role in the work the studios did, but I think it is misguided.”

Lindsy Parrott agrees. Although Tiffany was known for his high-paid designers who created lamps and pottery for the public, and his glassmakers who fulfilled his vision, she credits him with being the creative genius to make it all happen. “No one ever created windows the way Tiffany did them,” she said.

Maureen Byko is managing editor of JOM.
